Sortiergreifer
NBUG 04
Baggerklasse: 1,5 - 3 t
Inhalt: 35 l
Breite: 350 mm
library-viewer-file-manager
domain was triggered too early. This is usually an indicator for some code in the plugin or theme running too early. Translations should be loaded at the init
action or later. Please see Debugging in WordPress for more information. (This message was added in version 6.7.0.) in /www/htdocs/w01abec4/nbbau/wp-includes/functions.php on line 6114library-viewer-pro
domain was triggered too early. This is usually an indicator for some code in the plugin or theme running too early. Translations should be loaded at the init
action or later. Please see Debugging in WordPress for more information. (This message was added in version 6.7.0.) in /www/htdocs/w01abec4/nbbau/wp-includes/functions.php on line 6114complianz-gdpr
domain was triggered too early. This is usually an indicator for some code in the plugin or theme running too early. Translations should be loaded at the init

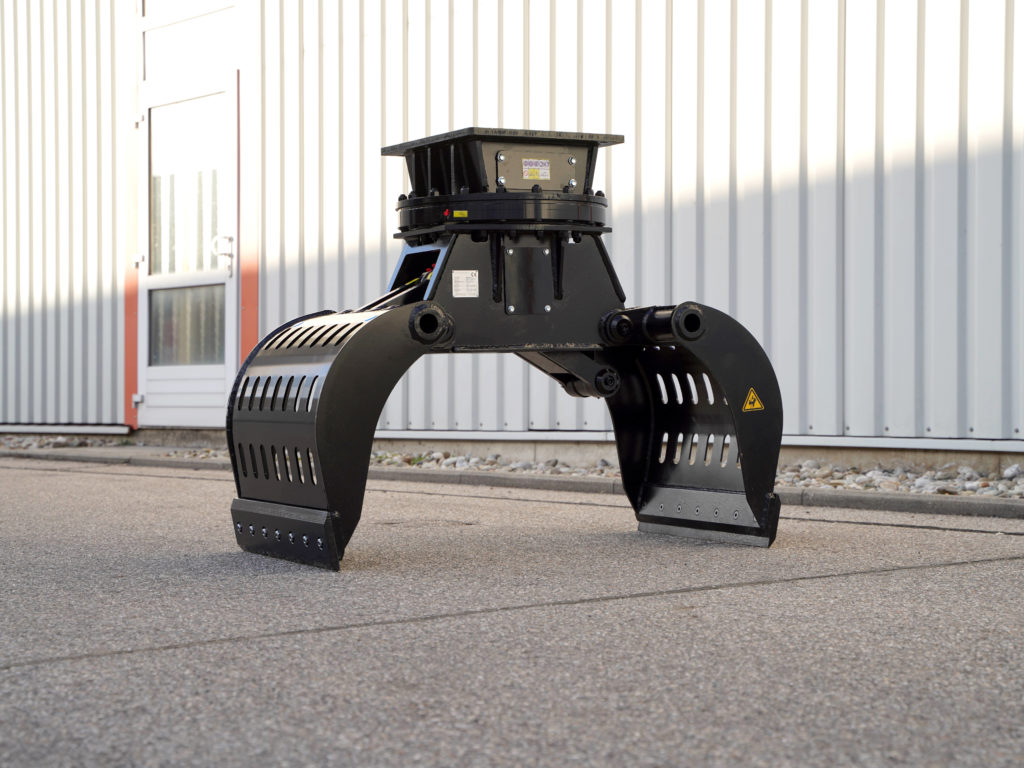

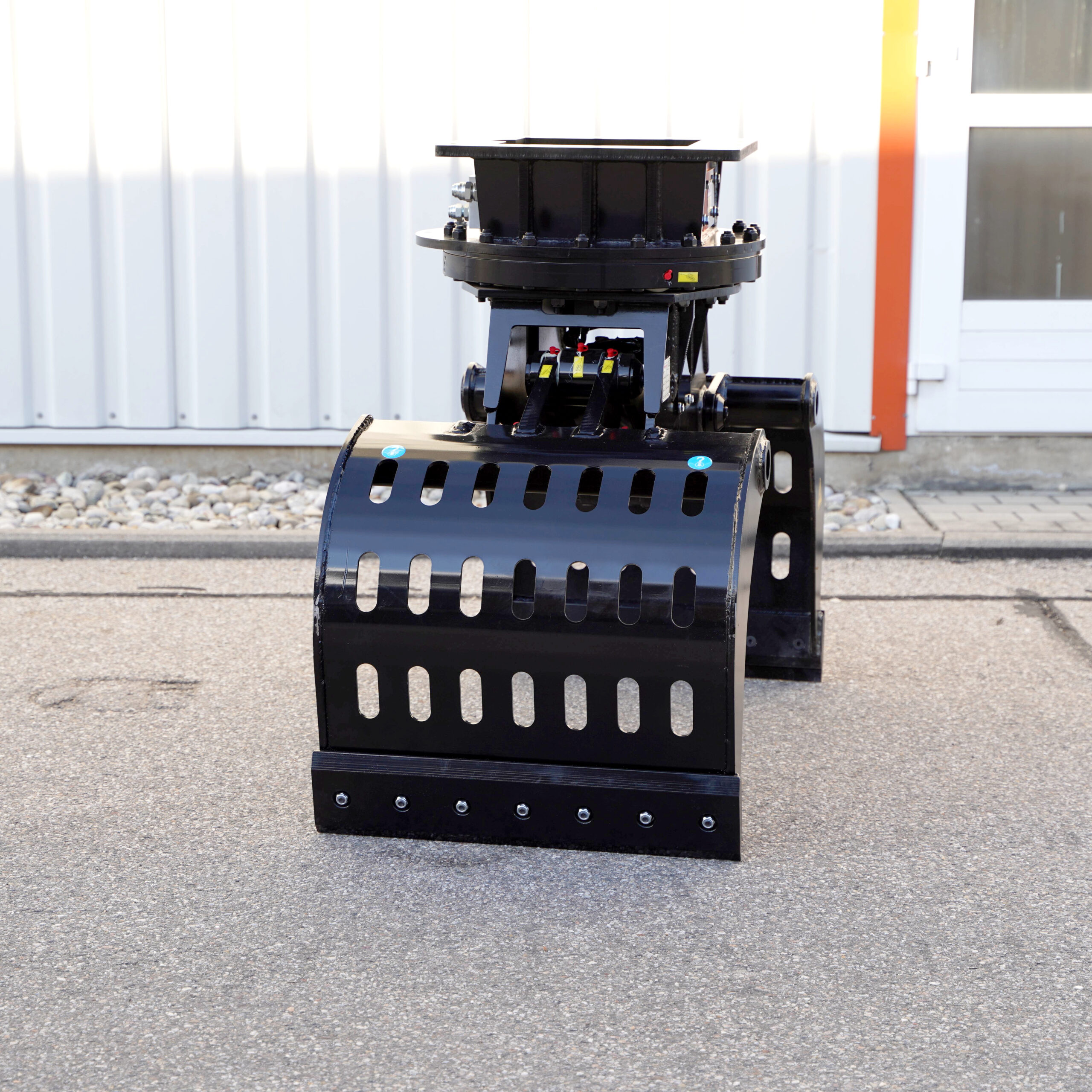

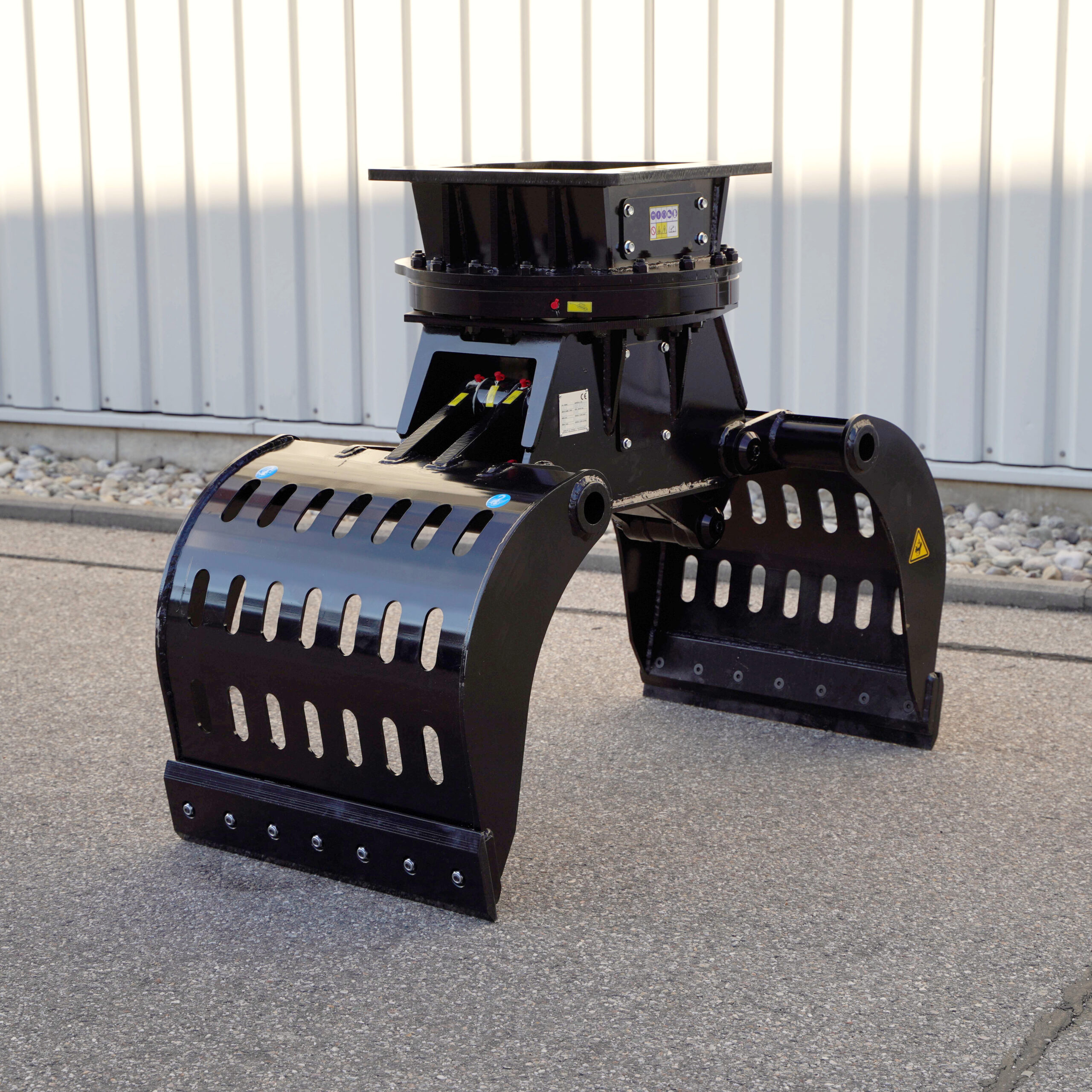

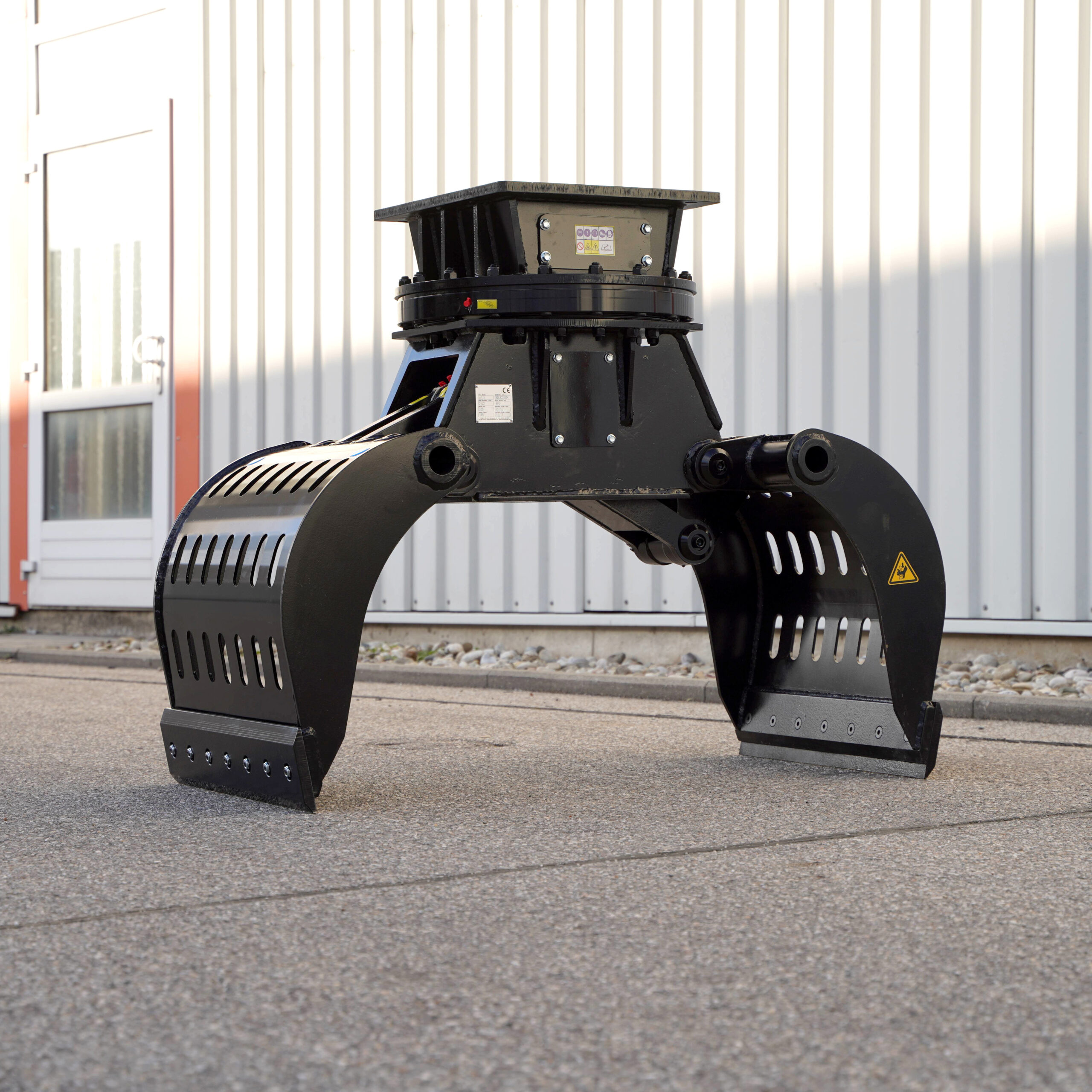

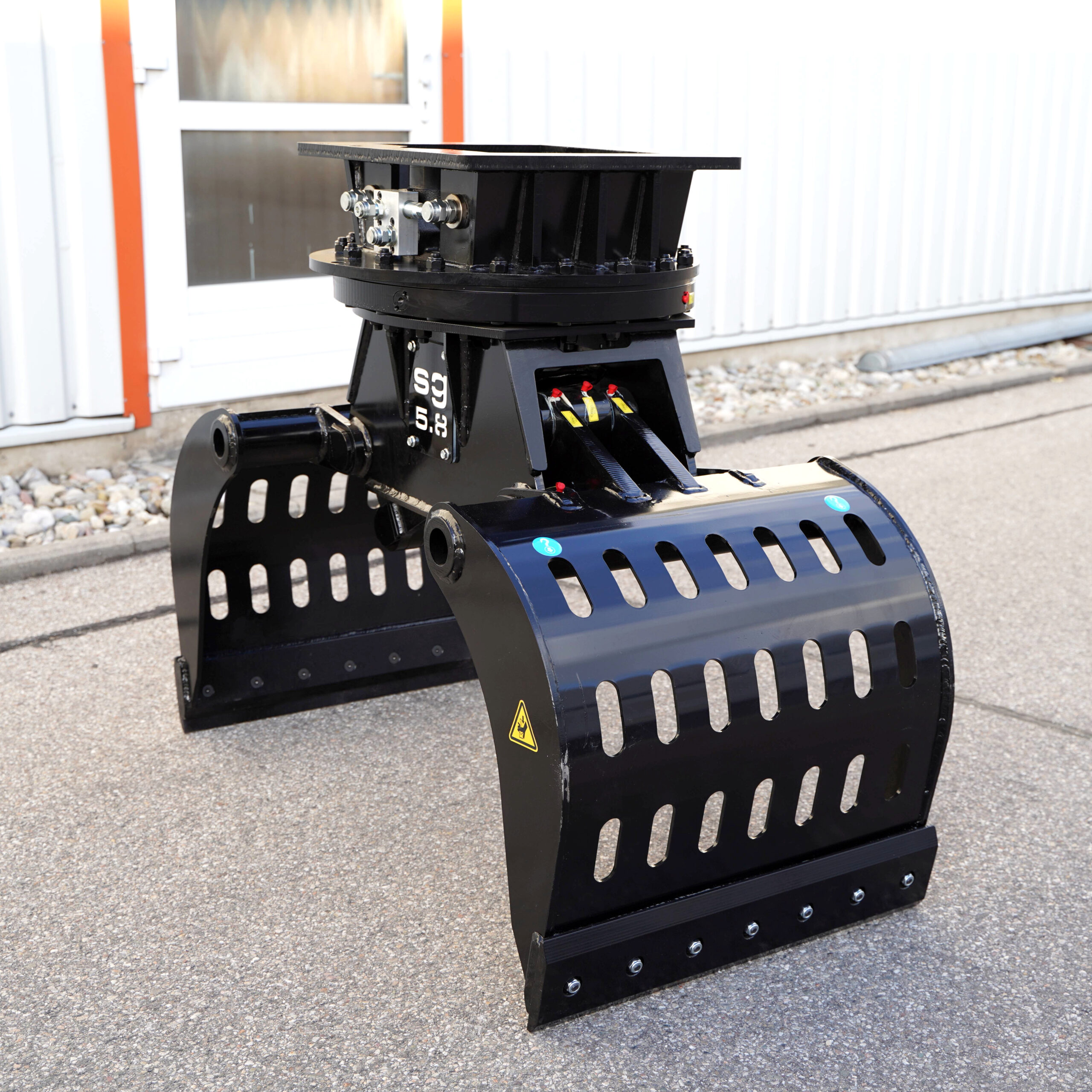

action or later. Please see Debugging in WordPress for more information. (This message was added in version 6.7.0.) in /www/htdocs/w01abec4/nbbau/wp-includes/functions.php on line 6114Der Greifer ist durch seine 360° Drehung für harte und extreme Aufgaben geeignet.
Allgemeines
TYP | SG 5.8 |
Baggerklasse | 5 – 10 t |
Gewicht | 500 kg |
Max. Zylinderdruck | 300 bar |
Max. Volumenstrom Zylinder | 40 – 50 l/min |
Min. – Max. Rotationsdruck | 50 bar |
Volumenstrom Rotation | 10 – 15 l/min |
Max. Öffnung | 1500 mm |
Fassungsvermögen | 200 l |
Schließkraft | 25 kn |
Abmessungen | |
Länge | 1500 mm |
Breite | 700 mm |
Höhe | 990 mm |
Fülle einfach kurz das Formular aus und Du bekommst in Kürze ein hammer Angebot von uns.
Baggerklasse: 1,5 - 3 t
Inhalt: 35 l
Breite: 350 mm
Baggerklasse: 7,5 - 12 t
Öffnungsweite: 1500 mm
Breite: 700 mm
Baggerklasse: 18 - 21 t
Öffnungsweite: 2000 mm
Gewicht: 1480 kg
Baggerklasse: 2,5 - 4 t
Öffnungsweite: 1100 mm
Breite: 500 mm
